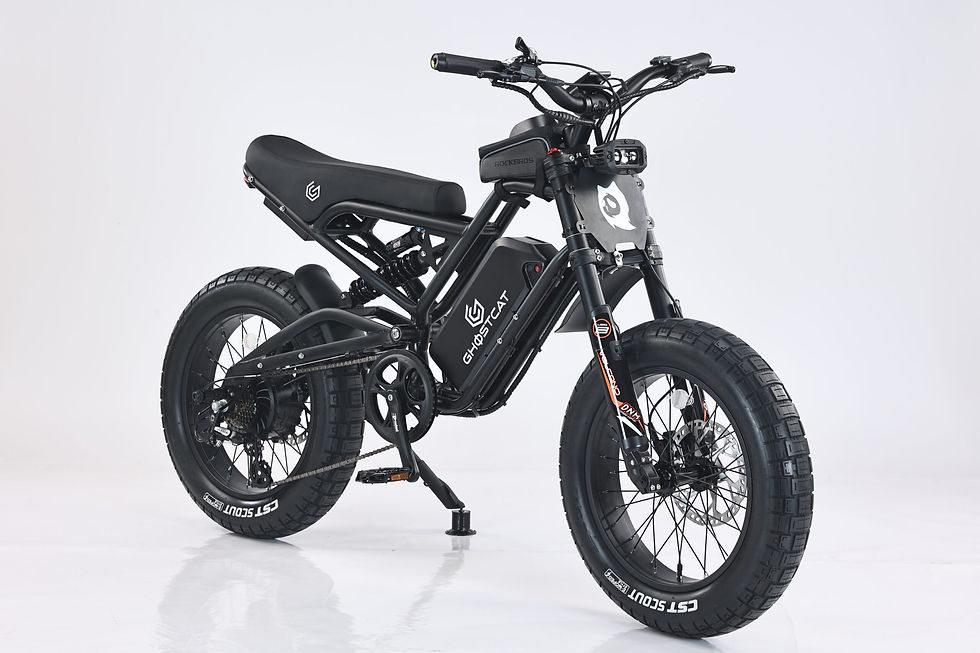

Ghostcat F3X1500W Pro
Introducing the 3rd generation GHOSTCAT F3X all-terrain CST fat tire electric bike specifically engineered to maneuver as a high-performance lightweight motorcycle inspired Dual Sport bike.
GHOSTCAT was carefully designed by selecting premium specifications to ensure a best-in-class riding experience for on-road and off-road adventures.
The lightweight aluminum alloy soft tail frame with adjustable premium DNM front and rear adjustable suspension provides the ultimate shock absorbing system to ensure you have a smooth ride across all terrains.
This bike is powered by a high powered 52v1500W nominal motor with 140NM+ torque. The bike is delivered programmed to 20 mph max speed and the motor is limited to 750W continuous power per class 2 e-bike requirements. The bike can be programmed to different e-bike classifications depending on local, state and federal electric bike regulations and private off-road use only mode can be unlocked to reach full power with a top speed of 35mph+. Please verify local, state and federal e-bike regulations for proper classification before purchase.
The bike is equipped with an 52v/20ah lithium battery giving you plenty of range 52 miles with an average speed of 20mph to explore.
The bike features an LCD display with the following driving modes, manual pedaling (7 gears), pedal assist mode (5 different settings) and pure electric.
This bike includes an extended seat for the ultimate comfort riding experience. Safety features include front and rear hydraulic brakes, LED front headlight and rear brake light.
Specifications
TOP SPEED - PRIVATE OFF ROAD 35MPH+
RANGE - 52 MILES OF RANGE AVERAGE SPEED 20MPH THROTTLE ONLY-OPERATION
CHARGE TIME - 5-7 HRS
BATTERY - 52v 20ah Lithium Battery 21700 Cells. GhostCat has received a SGS certificate of compliance under UL 2271 standards. Batteries sold in 2025 will be labeled with the SGS QR coded linked to our certification of compliance.
MOTOR/Controller - 52v/1500W XOFO nominal hub motor with 140NM+ torque (2080 Peak Watts), Controller 40amp
THROTTLE - FULL TWIST GRIP
DISPLAY - MEDIUM SCREEN LCD BACKLIGHT
DRIVING MODES - MODE 1-THROTTLE ONLY, MODE 2- PAS, MODE 3- MANUAL PEDALING
GEARING - 7 SPEED-SHIMANO
BRAKES - HYDRAULIC DISC BRAKES (203mm disc rotors 4 pistons)
SUSPENSION - PREMIUM DNM ADJUSTABLE REAR AND FRONT SUSPENSION
TIRES - 20x4 ALL TERRAIN CST SCOUT
SAFETY FUNCTIONS - FRONT LED HEADLIGHT, REAR BRAKE LIGHT & REAR FOOT PEGS
FRAME - 20-INCH ALUMINUM ALLOY WITH SOFTAIL
SEAT - EXTENDED SOFT TWO SEATER
BIKE WEIGHT - 82 LBS (including removable battery that weighs 11lbs)
DIMENSIONS - SEAT HEIGHT 33", LENGTH 65.7" X WIDTH 28" X HEIGHT 40.5"
RIDE WEIGHT LIMIT - 400 LBS
STORAGE - STORAGE BAG WATER RESISTANT WITH HIGH SENSITIVE TPU FILM WINDOW FOR CELL PHONE AND OTHER MISC ITEMS
