LMX 64 is designed and handmade in France.
- Class 2 e-bike certification - limited to 750W & 20 mph (32 km/h) top speed
- Modifiable to 2,500W & 31 mph top speed (off-road use only)
- Dual transmission - separate drives for pedal & motor
- Up to 170 N.m Torque power
- Motorcycle-style handlebar-mounted throttle
- 3 riding modes: Choose between 3 levels of pedal assistance, or give yourself a break and use the motorcycle-style handlebar throttle to propel you through city streets and off-road trails.
- 62 mile/100 km max battery range
- Rockshox suspension
- Designed & manufactured in France

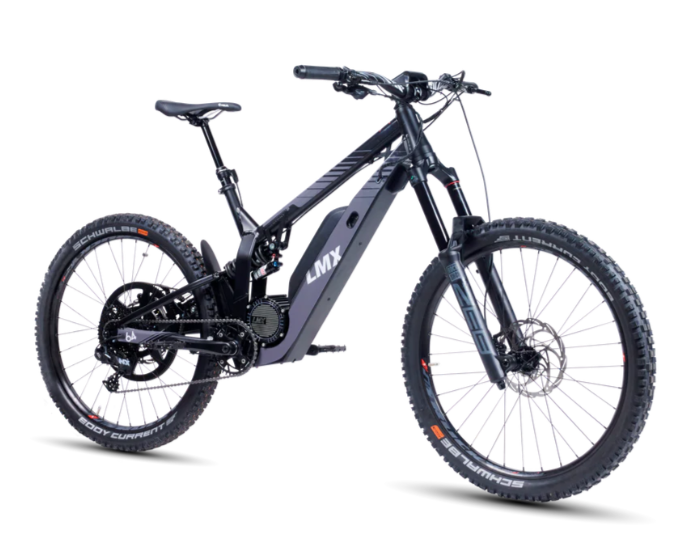

LMX 64 Apex (Special Order Only!)
FRAME
High strength aluminium made in France.
FINISHPowder coating finish in Nardo Grey. TRAVEL
180 mm front /180 mm rear
FRONT SUSPENSION
Formula Selva
REAR SHOCK
Marzocchi Bomber CR (Medium Frame) / Bos Syros (Large Frame)
Premium Suspension
WHEELSHalo Vortex 27.5"TIRES
Eddy Current 27.5" x 2.6"
PedalsWellGo Aluminium PedalsFLIP CHIP
Flip chip in the shock mount that adjusts the geometry by 1° for the head tube and 8mm for BB height
HEAD TUBE ANGLE65°SEAT TUBE ANGLE76° BOTTOM BRACKETHeight : 340 mm
REACH
500 mm in L
450 mm in M
CRANKS170 mmADJUSTABLE SEATPOST100 or 125 mm telescopic seat postBRAKES
203 mm disc
Formula Cura 4 Brakes
DRIVETRAIN11 speed sram NX 38 -11/46DOUBLE DRIVETRAIN SYSTEM
Separate Belt and freewheel system : patented LMX technology
Belt Kit comes as standard
REMOVABLE BATTERY850 WH 14S5PMOTOR
Designed for 2500W+ peak power
CONTROLLER
FOC controller with high phase amps
WEIGHT
27 kg
